使用注意事項

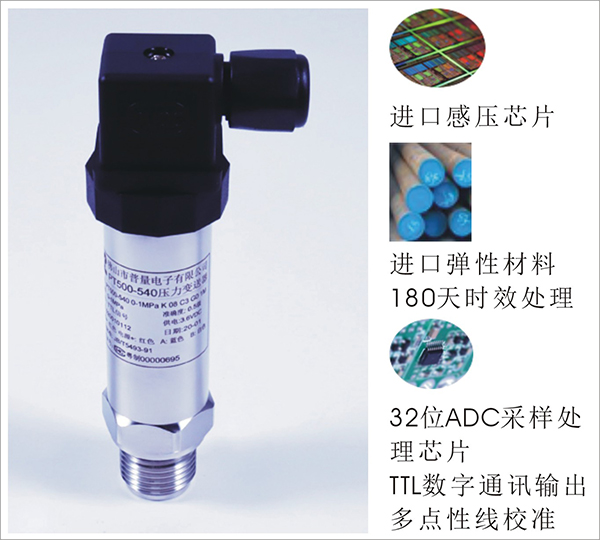

PT500-540 TTL數字壓力變送器使用注意事項
產品供電3.6VDC（范圍：3-5VDC）；
嚴禁使用硬物（如：螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡盒倔w受壓力測量輸出；

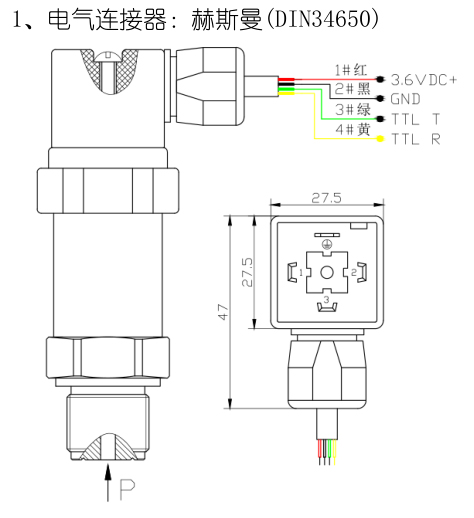

電源和信號線按訂購產品規格要求，正確接線；

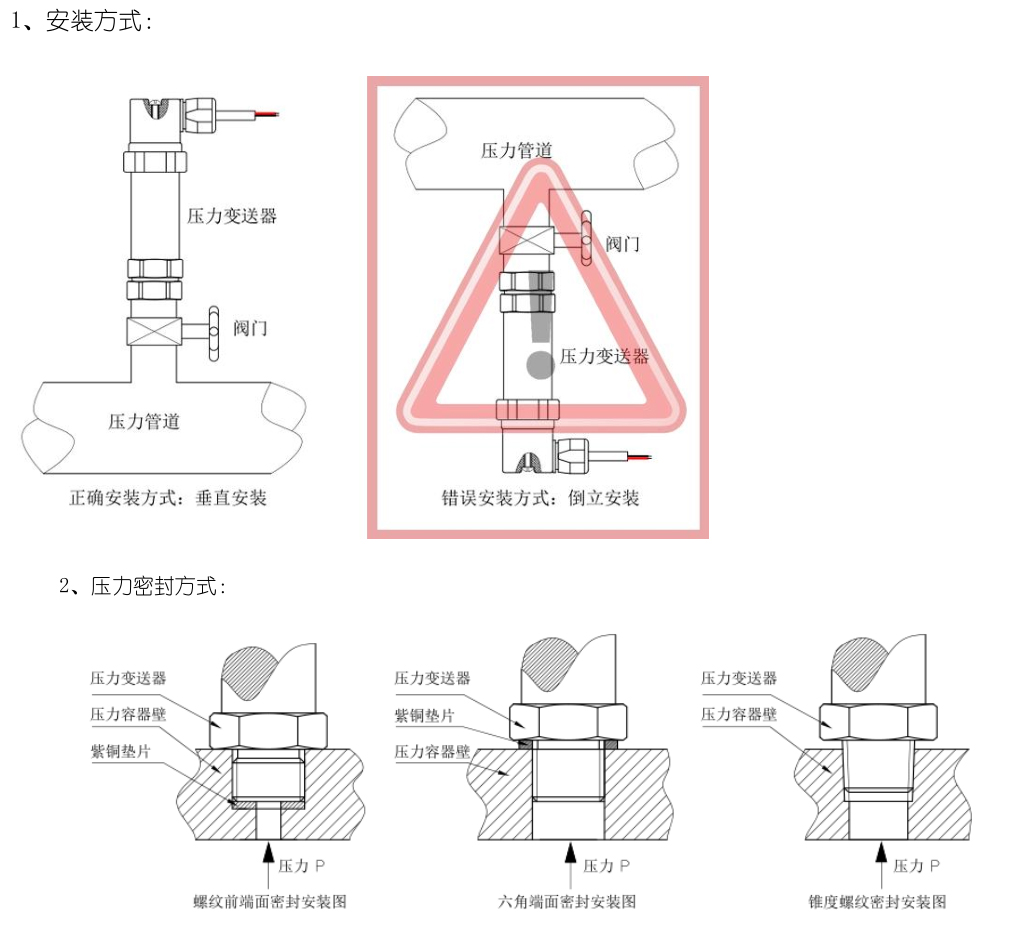

產品安裝時，受力部位為“過程連接六方扳手位”，扳手規格與六方相對應；
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍；
注意保護變送器引出電纜，現場使用跨度過大時，建議使用金屬管保護或架空；
壓力變送器屬精密計量?jī)x器，切勿強加沖擊、摔打，以免損壞芯體；
產品安裝于通風、干燥、無強腐蝕環境，露天安裝加防護裝置，避免陽光直接照射；
Precautions for PT500-540 TTL digital pressure transmitter
Product power supply 3.6vdc (range: 3-5vdc);
It is strictly prohibited to use hard objects (such as screwdriver, finger, iron nail, etc.) to make the pressure core body under pressure measurement output;
The power and signal wires shall be correctly wired according to the specifications of the ordered products;

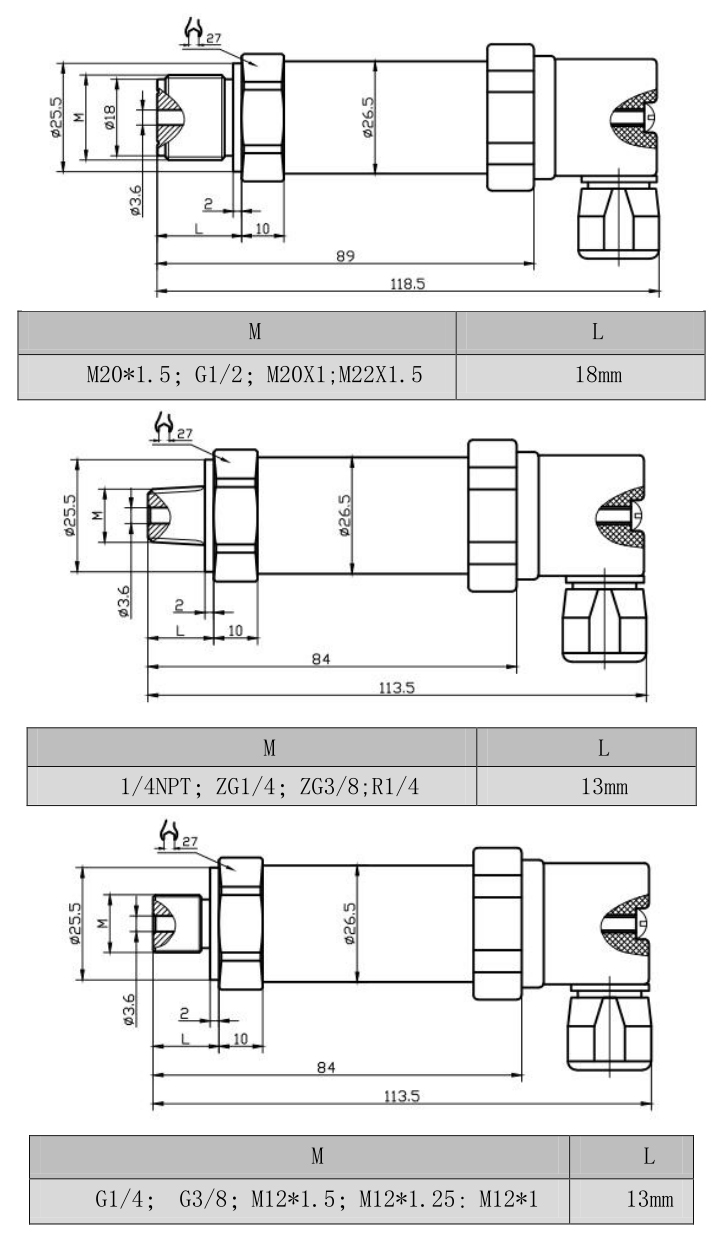

When the product is installed, the stressed part is "process connection hexagon wrench position", and the wrench specification corresponds to hexagon;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the tested system exceed the rated use range of the transmitter;
Pay attention to protect the outgoing cable of the transmitter. When the span is too large on site, it is recommended to use metal pipe for protection or overhead;
The pressure transmitter is a precision measuring instrument, do not impose impact or smash to avoid damaging the core;
The product is installed in a ventilated, dry and non corrosive environment, and installed in the open with protective devices to avoid direct sunlight;
